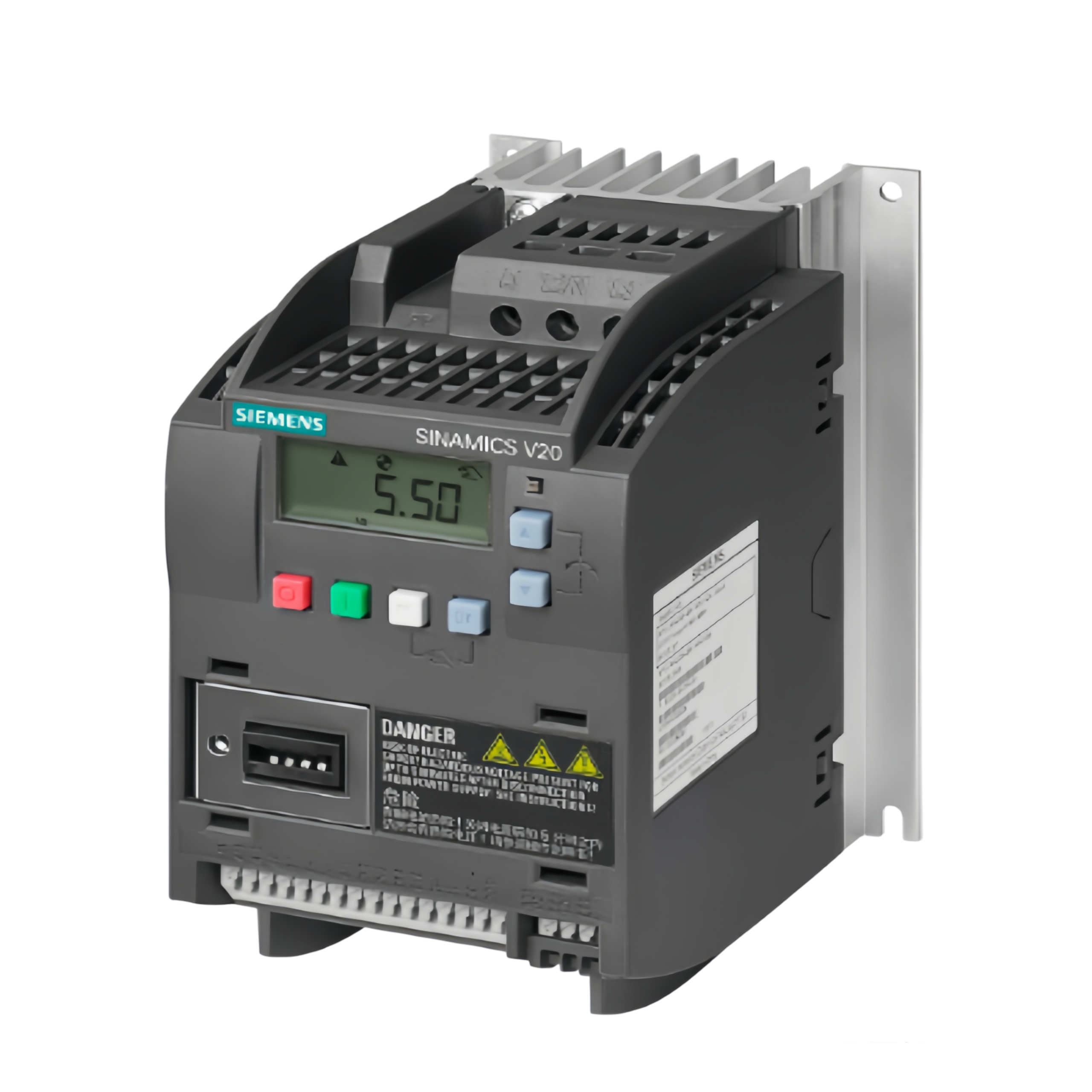

The 6SL3210-5BE17-5UV1 is a Siemens SINAMICS V20.
It delivers 0.75 kilowatts of rated power.
Overload capability is 150 percent for 60 seconds.
Input is three-phase 380-480V at 47-63Hz.
Rated output current is 2.2 amps.
Frame size A measures 90 x 150 x 145.5 mm.
No EMC filter is built in.
The control supply uses 24V DC.
USS and Modbus RTU are supported.
A basic operator panel is included.
Four digital inputs and two digital outputs.
Two analog inputs and one analog output.
A built-in braking unit is fitted.
Convection cooling keeps it silent.
